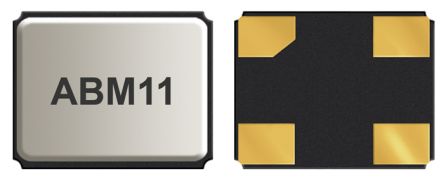

CRYSTAL 30.0000MHZ 10PF SMD [ABM11-30.000MHz-B1U-T]; 187-5794
by Abracon
0₫
Mã kho: 1875794
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 30MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 10pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 2mm |
| Width | 1.6mm |
| Height | 0.59mm |
| Dimensions | 2 x 1.6 x 0.59mm |
| Frequency Tolerance | ±10ppm |
| Frequency Stability | 10ppm |
| Series Resistance | 80Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
