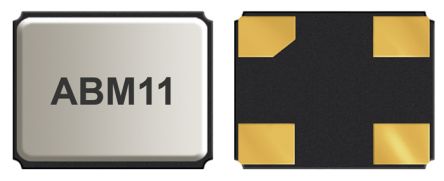

CRYSTAL 25.0000MHZ 18PF SMD [ABM11-25.000MHz-18-B2Y-T]; 187-5792
by Abracon
0₫
Mã kho: 1875792
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 25MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 18pF |
| Package Type | SMD |
| Pin Count | 4 |
| Length | 2mm |
| Width | 1.6mm |
| Height | 0.59mm |
| Dimensions | 2 x 1.6 x 0.59mm |
| Frequency Tolerance | ±20ppm |
| Frequency Stability | 30ppm |
| Series Resistance | 100Ω |
| Minimum Operating Temperature | -20°C |
| Maximum Operating Temperature | 70°C |
