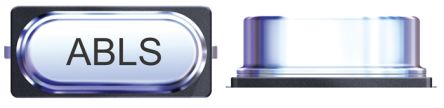

CRYSTAL 4.0000MHZ 12PF SMD [ABLS-4.000MHz-12-D-4-Y-T]; 187-5869
by Abracon
0₫
Mã kho: 1875869
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Standard Frequency | 4MHz |
| Mounting Type | Surface Mount |
| Load Capacitance | 12pF |
| Package Type | SMD |
| Pin Count | 2 |
| Length | 11.4mm |
| Width | 4.7mm |
| Height | 4.1mm |
| Dimensions | 11.4 x 4.7 x 4.1mm |
| Frequency Tolerance | ±30ppm |
| Frequency Stability | ±30ppm |
| Series Resistance | 180Ω |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
