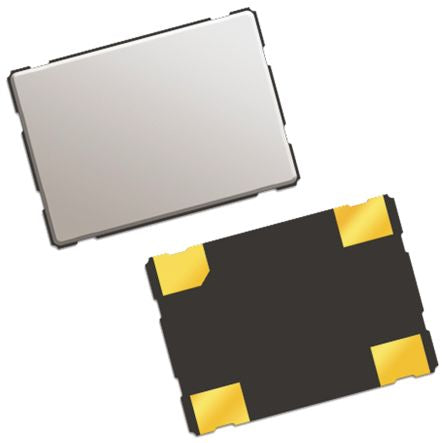

QX733A40.00000B15R Crystal Oscillator, 40 MHz, ±25ppm HCMOS 15pF, 4-Pin SMD, 7 x 5 x 1.4mm [QX733A40.00000B15R]; 813-6223
by QANTEK
0₫
Mã kho: 8136223
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Output Frequency | 40MHz |
| Frequency Stability | ±25ppm |
| Package Type | SMD |
| Output Level | HCMOS |
| Mounting Type | Surface Mount |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Height | 1.4mm |
| Dimensions | 7 x 5 x 1.4mm |
