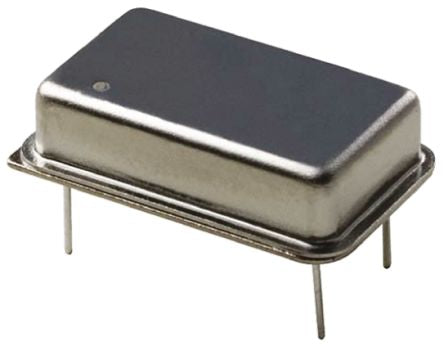

Clock Oscillator QX14T50B7.372800B50TT, 7.3728 MHz, ±50ppm HCMOS 50pF, 14-Pin PDIP, 20.8 x 13.2 x 5.08mm [QX14T50B7.372800B50TT]; 173-5873
by QANTEK
0₫
Mã kho: 1735873
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Oscillator Type | Clock |
| Output Frequency | 7.3728MHz |
| Frequency Stability | ±50ppm |
| Package Type | DIP14 |
| Output Level | HCMOS |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Height | 5.08mm |
| Maximum Operating Temperature | 85°C |
| Dimensions | 20.8 x 13.2 x 5.08mm |
