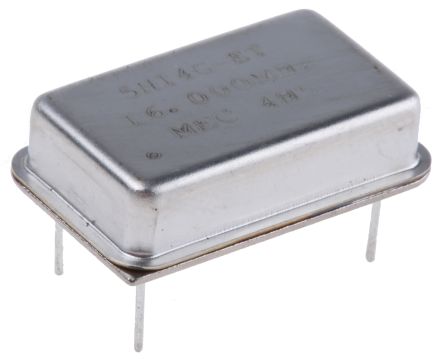

Clock Oscillator 5H14ET-16.000, 16 MHz, ±50ppm HCMOS, TTL 15pF, 14-Pin PDIP, 20.2 x 10.7 x 5.08mm [5H14ET-16.000]; 767-5260
by MERCURY
0₫
Mã kho: 7675260
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Oscillator Type | Clock |
| Output Frequency | 16MHz |
| Frequency Stability | ±50ppm |
| Package Type | PDIP |
| Output Level | HCMOS, TTL |
| Mounting Type | Through Hole |
| Minimum Operating Temperature | -40°C |
| Height | 5.08mm |
| Maximum Operating Temperature | 85°C |
| Dimensions | 20.2 x 10.7 x 5.08mm |
