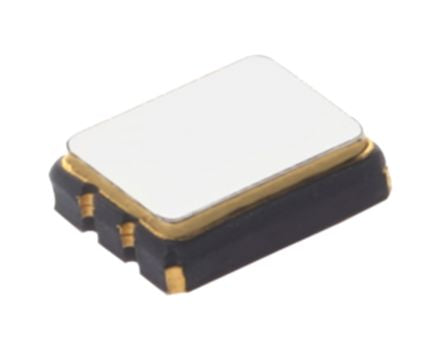

Clock Oscillator 655P15623I3T, 156.25 MHz, ±50ppm LVPECL, 6-Pin SMD, 5 x 3.2 x 1.2mm [655P15623I3T]; 178-2694
by CTS
0₫
Mã kho: 1782694
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Oscillator Type | Clock |
| Output Frequency | 156.25MHz |
| Frequency Stability | ±50ppm |
| Package Type | SMD |
| Output Level | LVPECL |
| Minimum Operating Supply Voltage | 3.13V dc |
| Mounting Type | Surface Mount |
| Maximum Operating Supply Voltage | 3.46V dc |
| Minimum Operating Temperature | -40°C |
| Maximum Operating Temperature | 85°C |
| Height | 1.2mm |
| Dimensions | 5 x 3.2 x 1.2mm |
