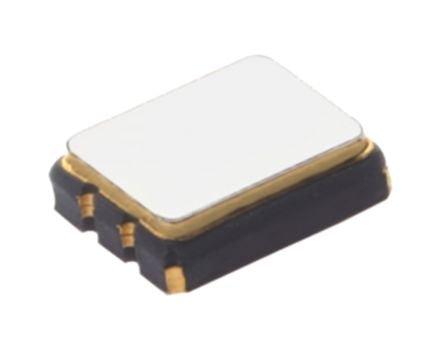

Clock Oscillator 633P20003I3T, 200 MHz, ±50ppm LVPECL, 4-Pin SMD, 3.2 x 2.5 x 0.9mm [633P20003I3T]; 178-2654
by CTS
0₫
Mã kho: 1782654
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Oscillator Type | Clock |
Output Frequency | 200MHz |
Frequency Stability | ±50ppm |
Package Type | SMD |
Output Level | LVPECL |
Minimum Operating Supply Voltage | 3.13V dc |
Maximum Operating Supply Voltage | 3.46V dc |
Mounting Type | Surface Mount |
Minimum Operating Temperature | -40°C |
Maximum Operating Temperature | 85°C |
Height | 0.9mm |
Dimensions | 3.2 x 2.5 x 0.9mm |
