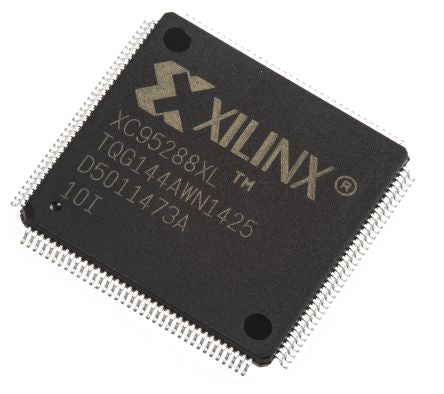

Xilinx XC95288XL-10TQG144I, CPLD XC9500XL Flash 288 Cells, 117 I/O, 16 Labs, ISP, 3 → 3.6 V 144-Pin TQFP [XC95288XL-10TQG144I]; 173-2085
by Xilinx
0₫
Mã kho: 1732085
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | XC9500XL |
| Number of Macro Cells | 288 |
| Number of User I/Os | 117 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 16 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 144 |
| Individual Output Enable Control | Yes |
| Dimensions | 20 x 20 x 1.4mm |
| Height | 1.4mm |
| Length | 20mm |
| Width | 20mm |
| Maximum Operating Temperature | +85 °C |
| Minimum Operating Supply Voltage | 3 V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Supply Voltage | 3.6 V |
