CPLDs > CPLDs

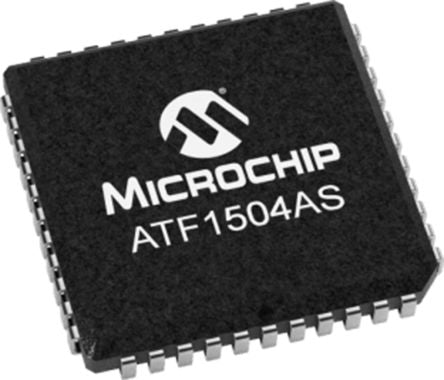

Microchip Technology ATF1504AS-10JU44, CPLD ATF1504AS EEPROM 64 Cells, 68 I/O, 64 Labs, 10ns, ISP, 44-Pin PLCC [ATF1504AS-10JU44]; 177-1497

0₫
(Giá chưa VAT).
Mã kho: 1771497

Mã nhà sản xuất: ATF1504AS-10JU44

Liên hệ để có giá tốt (Vietnam: 0898.332.898,  E-mail: SKF@nguyenxuong.com)

THÔNG SỐ KỸ THUẬT
Family Name ATF1504AS
Number of Macro Cells 64
Number of User I/Os 68
Memory Type EEPROM
Number of Logic Blocks/Elements 64
In System Programmability In System
Mounting Type Surface Mount
Package Type PLCC
Pin Count 44
Propagation Delay 10ns
Individual Output Enable Control Yes
Dimensions 16.6 x 16.6 x 4.06mm
Height 4.06mm
Length 16.6mm
Maximum Operating Supply Voltage 5.5 V
Propagation Delay Test Condition 35pF
Minimum Operating Supply Voltage 4.5 V
Maximum Operating Temperature +85 °C
Re-programmability Support Yes
Width 16.6mm
Minimum Operating Temperature -40 °C
