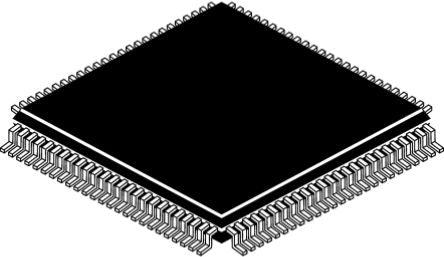

Lattice Semiconductor LCMXO2-1200HC-4TG100I, CPLD MachXO2 Flash 79 I/O, 1280 Labs, 7.24ns, ISP, 100-Pin TQFP [LCMXO2-1200HC-4TG100I]; 168-4391
0₫
Mã kho: 1684391
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | MachXO2 |
| Number of User I/Os | 79 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 1280 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 100 |
| Propagation Delay | 7.24ns |
| Dimensions | 14 x 14 x 1.4mm |
| Height | 1.4mm |
| Length | 14mm |
| Maximum Operating Temperature | +125 °C |
| Width | 14mm |
| Minimum Operating Temperature | -40 °C |
| Minimum Operating Supply Voltage | 2.375 V |
| Maximum Operating Supply Voltage | 3.465 V |
