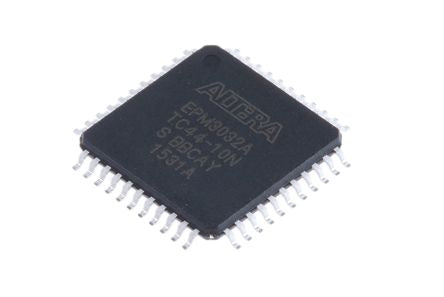

Altera EPM3032ATC44-10N, CPLD MAX 3000A EEPROM 32 Cells, 34 I/O, 2 Labs, ISP, 44-Pin TQFP [EPM3032ATC44-10N]; 545-8814
by Altera
0₫
Mã kho: 5458814
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | MAX 3000A |
| Number of Macro Cells | 32 |
| Number of User I/Os | 34 |
| Memory Type | EEPROM |
| Number of Logic Blocks/Elements | 2 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 44 |
| Individual Output Enable Control | Yes |
| Dimensions | 10 x 10 x 0.95mm |
| Height | 0.95mm |
| Length | 10mm |
| Re-programmability Support | Yes |
| Maximum Operating Supply Voltage | 3.6 V |
| Minimum Operating Temperature | 0 °C |
| Minimum Operating Supply Voltage | 3 V |
| Width | 10mm |
| Maximum Operating Temperature | +70 °C |
