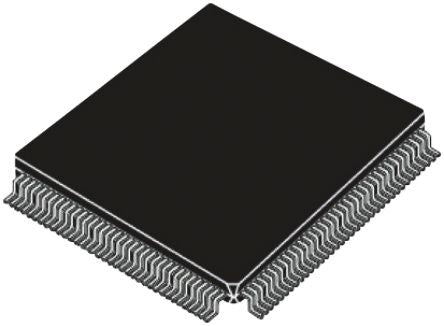

Altera 5M570ZT144C4N, CPLD MAX V Flash 440 Cells, 114 I/O, 570 Labs, 9.5ns, ISP, 144-Pin TQFP [5M570ZT144C4N]; 170-3007
by Altera
0₫
Mã kho: 1703007
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | MAX V |
Number of Macro Cells | 440 |
Number of User I/Os | 114 |
Memory Type | Flash |
Number of Logic Blocks/Elements | 570 |
In System Programmability | In System |
Mounting Type | Surface Mount |
Package Type | TQFP |
Pin Count | 144 |
Propagation Delay | 9.5ns |
Individual Output Enable Control | Yes |
Dimensions | 22 x 22mm |
Length | 22mm |
Propagation Delay Test Condition | 10pF |
Maximum Operating Supply Voltage | 1.89 V |
Re-programmability Support | Yes |
Minimum Operating Temperature | 0 °C |
Width | 22mm |
Minimum Operating Supply Voltage | 1.71 V |
Maximum Operating Temperature | +85 °C |
