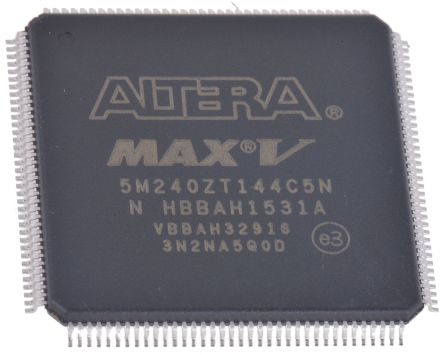

Altera 5M240ZT144C5N, CPLD MAX V Flash 192 Cells, 114 I/O, 240 Labs, 17.7ns, ISP, 144-Pin TQFP [5M240ZT144C5N]; 830-3647
by Altera
0₫
Mã kho: 8303647
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | MAX V |
| Number of Macro Cells | 192 |
| Number of User I/Os | 114 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 240 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | TQFP |
| Pin Count | 144 |
| Propagation Delay | 17.7ns |
| Individual Output Enable Control | Yes |
| Dimensions | 22 x 22mm |
| Length | 22mm |
| Maximum Operating Temperature | +85 °C |
| Re-programmability Support | Yes |
| Maximum Operating Supply Voltage | 1.89 V |
| Minimum Operating Temperature | 0 °C |
| Propagation Delay Test Condition | 10pF |
| Minimum Operating Supply Voltage | 1.71 V |
| Width | 22mm |
