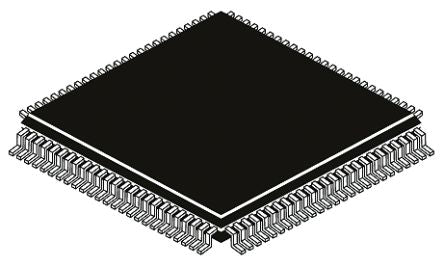

Altera 5M160ZT100C4N, CPLD MAX V Flash 128 Cells, 79 I/O, 160 Labs, 7.9ns, ISP, 100-Pin TQFP [5M160ZT100C4N]; 830-3629
by Altera
0₫
Mã kho: 8303629
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Family Name | MAX V |
Number of Macro Cells | 128 |
Number of User I/Os | 79 |
Memory Type | Flash |
Number of Logic Blocks/Elements | 160 |
In System Programmability | In System |
Mounting Type | Surface Mount |
Package Type | TQFP |
Pin Count | 100 |
Propagation Delay | 7.9ns |
Individual Output Enable Control | Yes |
Dimensions | 16 x 16mm |
Length | 16mm |
Minimum Operating Supply Voltage | 1.71 V |
Propagation Delay Test Condition | 10pF |
Minimum Operating Temperature | 0 °C |
Maximum Operating Supply Voltage | 1.89 V |
Width | 16mm |
Maximum Operating Temperature | +85 °C |
Re-programmability Support | Yes |
