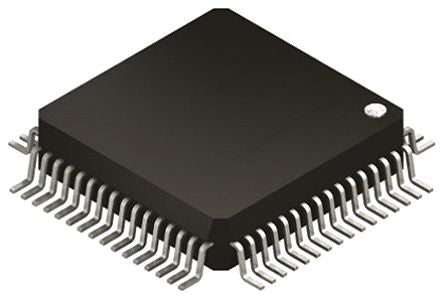

Altera 5M160ZE64A5N, CPLD MAX V Flash 128 Cells, 54 I/O, 160 Labs, 7.5ns, ISP, 1.71 → 1.89 V 64-Pin EQFP [5M160ZE64A5N]; 921-3573
by Altera
0₫
Mã kho: 9213573
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Family Name | MAX V |
| Number of Macro Cells | 128 |
| Number of User I/Os | 54 |
| Memory Type | Flash |
| Number of Logic Blocks/Elements | 160 |
| In System Programmability | In System |
| Mounting Type | Surface Mount |
| Package Type | EQFP |
| Pin Count | 64 |
| Propagation Delay | 7.5ns |
| Individual Output Enable Control | Yes |
| Dimensions | 7 x 7 x 1.05mm |
| Height | 1.05mm |
| Length | 7mm |
| Propagation Delay Test Condition | 10pF |
| Re-programmability Support | Yes |
| Maximum Operating Temperature | +125 °C |
| Maximum Operating Supply Voltage | 1.89 V |
| Width | 7mm |
| Minimum Operating Supply Voltage | 1.71 V |
| Minimum Operating Temperature | -40 °C |
