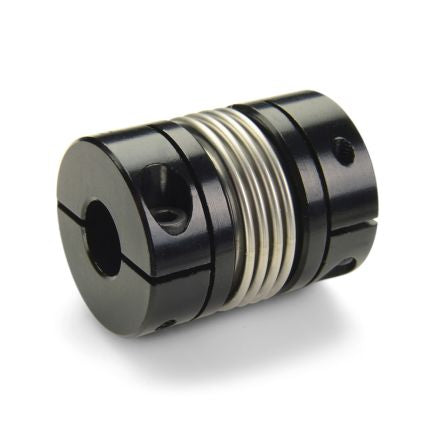

Ruland Stainless Steel 25.4mm OD Bellows Coupling with Clamping Fastening [MBC25-12-12-A]; 174-7177
by Ruland
0₫
Mã kho: 1747177
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bore | 12mm |
| Coupling Types | Bellows Coupling |
| Outside Diameter | 25.4mm |
| Length | 33.3mm |
| Fastening Type | Clamping |
| Torque Rating | 6.8Nm |
| Torsional Stiffness | 27°/Nm |
| Misalignment - Angular | 1.5° |
| Misalignment - Parallel | 0.1mm |
| Misalignment - Axial | 0.3mm |
| Bellows Material | Stainless Steel |
