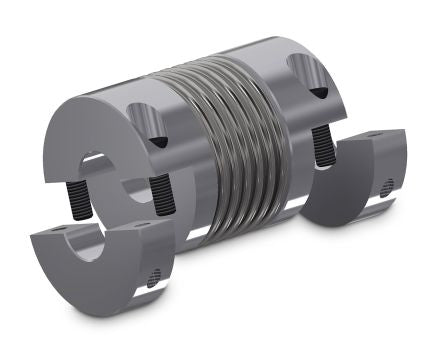

Bellows Coupling, Removable clamp: Long. [593.66.5858]; 196-7691
by Huco
0₫
Mã kho: 1967691
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Bore | 32mm |
| Coupling Types | Bellows Coupling |
| Outside Diameter | 66mm |
| Length | 89mm |
| Fastening Type | Clamp |
| Torque Rating | 60Nm |
| Torsional Stiffness | 50000Nm/rad |
| Moment of Inertia | 34360 |
| Misalignment - Angular | 2° |
| Misalignment - Parallel | 0.25mm |
| Misalignment - Axial | 1mm |
| Bellows Material | Stainless Steel |
