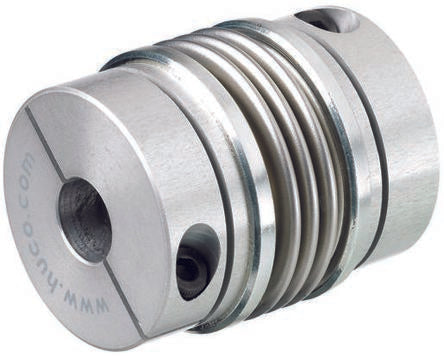

Huco Stainless Steel 41mm OD Bellows Coupling with Set Screw Fastening [530.41.4242]; 693-2506
by Huco
0₫
Mã kho: 6932506
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coupling Types | Bellows Coupling |
| Bore | 16mm |
| Outside Diameter | 41mm |
| Length | 49.7mm |
| Fastening Type | Set Screw |
| Torque Rating | 7.61Nm |
| Torsional Stiffness | 2880Nm/rad |
| Moment of Inertia | 2490 x 10^-8kg/m² |
| Misalignment - Angular | 2.5° |
| Misalignment - Parallel | 0.15mm |
| Misalignment - Axial | 0.8mm |
| Bellows Material | Stainless Steel |
