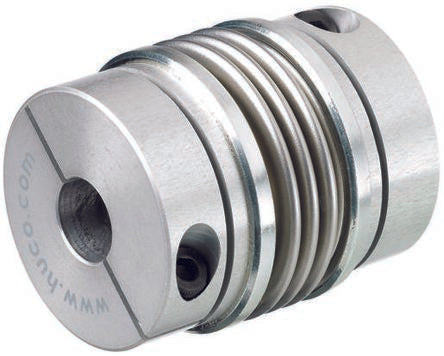

Huco Stainless Steel 20mm OD Bellows Coupling with Set Screw Fastening [530.20.2020]; 693-2473
by Huco
0₫
Mã kho: 6932473
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coupling Types | Bellows Coupling |
| Bore | 5mm |
| Outside Diameter | 20mm |
| Length | 31mm |
| Fastening Type | Set Screw |
| Torque Rating | 2.27Nm |
| Torsional Stiffness | 315Nm/rad |
| Moment of Inertia | 90 x 10^-8kg/m² |
| Misalignment - Angular | 2° |
| Misalignment - Parallel | 0.06mm |
| Misalignment - Axial | 0.35mm |
| Bellows Material | Stainless Steel |
