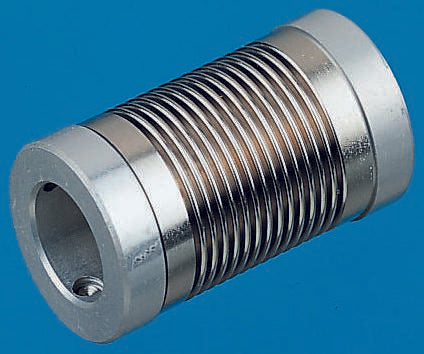

Huco Electrodeposited Nickel 25mm OD Bellows Coupling with Set Screw Fastening [321.25.3636]; 748-314
by Huco
0₫
Mã kho: 748314
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Coupling Types | Bellows Coupling |
| Bore | 1/2in |
| Outside Diameter | 25mm |
| Length | 33mm |
| Fastening Type | Set Screw |
| Torque Rating | 132Ncm |
| Torsional Stiffness | 515Nm/rad |
| Moment of Inertia | 161 x 10^-8kg/m² |
| Misalignment - Angular | 10° |
| Misalignment - Parallel | +2.7 → -3.5mm |
| Misalignment - Axial | 2.07mm |
| Bellows Material | Electrodeposited Nickel |
