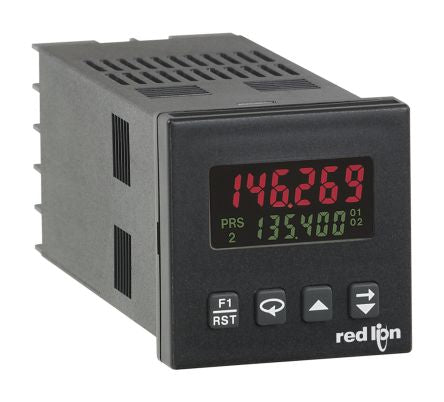

Red Lion 6 Digit, LCD, Counter, 50/60Hz, 85 → 250 V ac [C48CS103]; 905-5431
by Red Lion
0₫
Mã kho: 9055431
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Supply Voltage | 85 → 250 V ac |
| Display Type | LCD |
| Input Type | Current, Logic, Voltage |
| Connection Type | Screw-Terminal |
| Reset Method | Automatic |
| Number of Digits | 6 |
| Mounting Type | DIN |
| Output / Interface | Current, Logic, Voltage |
| Count Direction | Bi-Directional |
| Digit Height | 5.08 (Secondary Display) mm, 7.62 (Main Display) mm |
| Backlighting | Yes |
| Maximum Count Frequency | 50/60Hz |
| Meter Type | Electronic |
| Depth | 105.9mm |
| Cutout Width | 45mm |
| Measurement Range | 0.00001 → 9.99999h |
| Minimum Operating Temperature | 0°C |
| Minimum Measurement | 0h |
| Function | Counter |
| Series | C48C |
| Cutout Size | 45 x 45 mm |
| Maximum Operating Temperature | +50°C |
| Approvals | Canadian Requirements Under the Component, File #E137808, Inc., Recognition Program of Underwriters Laboratories, Recognized to U.S., UL Recognized Component |
| Maximum Temperature | +50°C |
| Cutout Height | 45mm |
