Panduit Corrugated loom tubing slit wall, 1" (25.4mm) x 100' (30.5m), polyethylene, orange. [CLT100F-C3]; PAK466

Name: Panduit Corrugated loom tubing slit wall, 1" (25.4mm) x 100' (30.5m), polyethylene, orange. [CLT100F-C3]; PAK466
Brand: Panduit
SKU: PAK466
Price: 2533500.0 VND
Availability: InStock

by Panduit

2.533.500₫

(Giá chưa VAT).

Mã kho: PAK466

Mã nhà sản xuất: CLT100F-C3

Đơn vị tính: FT

Quy cách đóng gói: 1

Quantity

Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)

Wire Routing Management Protection / Abrasion Protection / Corrugated Loom Tubing Fittings: Panduit CLT100F-C3

MÔ TẢ SẢN PHẨM

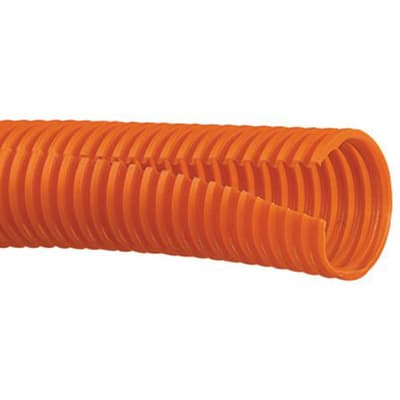

The CLT100F-C3 Corrugated Loom Slit Wall Tubing protects cables from impact and abrasion. Features a slit for easy installation onto a bundle of wires or a pre-assembled harness assembly, increasing productivity. Hold in place with cable ties and accessories. Suitable for indoor applications. UL94-H

_THÔNG SỐ KỸ THUẬT:

Application	Covers wire and cable to protect from abrasion
Note	Slit Wall
Product Type	Corrugated Loom Tubing
Color	Orange
Environment	Indoor
Flammability Rating	UL94-HB
Inside Diameter (In.)	0.91
Inside Diameter (mm)	23.2
Material	Polyethylene
Resistance Properties	Provides light crush and impact resistance
Maximum Operating Temperature (°C)	50
Minimum Operating Temperature (°C)	-40
Maximum Operating Temperature (°F)	122
Minimum Operating Temperature (°F)	-40
Nominal Diameter (In.)	1
Nominal Diameter (mm)	25.4
Outer Diameter (In.)	1.1
Outer Diameter (mm)	28
Overall Length (ft.)	100
Overall Length (m)	30.5
Standards Met	RoHS Compliant
Part Features	Provides protection for cables. Slitted for easier install onto a bundle of wires or a pre-assembled harness assembly
