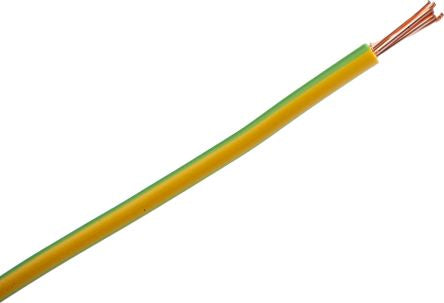

Prysmian 6491X H07V-R Conduit Cable, 4 mm² CSA , 750 V, Green/Yellow PVC 100m [20147719]; 381-179
by Prysmian
0₫
Mã kho: 381179
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Fire Behaviour | Flame Retardant |
Harmonised Code | H07V-R |
Outer Sheath Material | PVC |
Cross Sectional Area | 4 mm² |
Type | 6491X |
Length | 100m |
Outer Diameter | 4.2mm |
Core Strands | 7/0.85 mm |
Sheath Colour | Green/Yellow |
Voltage Rating | 750 V |
Current Rating | 32 A |
Insulation Wall Thickness | 0.8mm |
Number of Strands | 7 |
Standards Met | BS EN 60228 Class 1 or Class 2, BS6004, PVC Insulation complying with BS EN 50363-3 Type Tl1 |
Size of Strands | 0.85 mm |
Series | 6491X |
