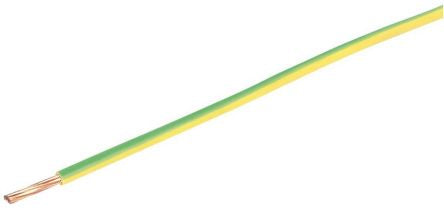

Prysmian 6491B H07Z-R Conduit Cable, 4 mm² CSA , 750 V, Green/Yellow LSZH 100m [20147330]; 363-351
by Prysmian
0₫
Mã kho: 363351
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Harmonised Code | H07Z-R |
Outer Sheath Material | LSZH |
Cross Sectional Area | 4 mm² |
Type | 6491B |
Length | 100m |
Outer Diameter | 4.2mm |
Core Strands | 7/0.85 mm |
Sheath Colour | Green/Yellow |
Voltage Rating | 750 V |
Current Rating | 40 A |
Insulation Wall Thickness | 0.8mm |
Size of Strands | 0.85 mm |
BASEC Approval | Yes |
Number of Strands | 7 |
Series | 6491B |
