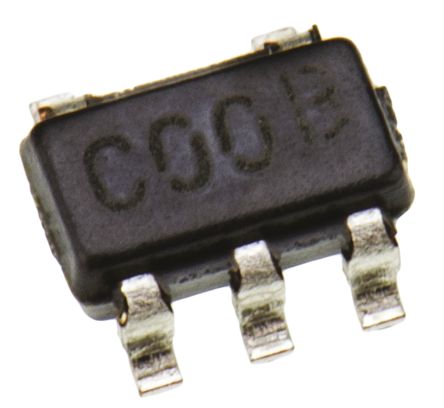

LMC7211BIM5/NOPB Texas Instruments, Comparator, Push-Pull O/P, 4μs 3 → 12 V 5-Pin SOT-23 [LMC7211BIM5/NOPB]; 534-4260
0₫
Mã kho: 5344260
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOT-23 |
| Power Supply Type | Single |
| Output Type | Push-Pull |
| Number of Channels per Chip | 1 |
| Typical Response Time | 4µs |
| Pin Count | 5 |
| Typical Single Supply Voltage | 3 → 12 V |
| Dimensions | 2.92 x 1.6 x 1.02mm |
| Length | 2.92mm |
| Width | 1.6mm |
| Height | 1.02mm |
| Typical CMRR | 75dB |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Typical PSRR | 80dB |
| Typical Voltage Gain | 100 dB |
