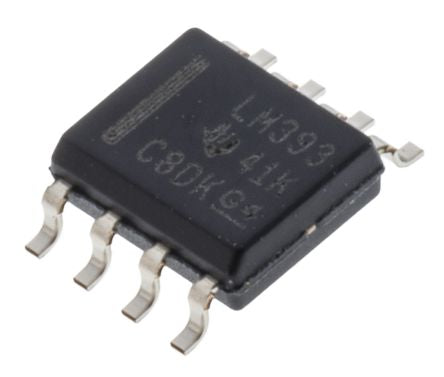

LM393D Texas Instruments, Dual Comparator, Open Collector O/P, 1.3μs 3 → 28 V 8-Pin SOIC [LM393D]; 100-0752
0₫
Mã kho: 1000752
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual, Single |
| Output Type | Open Collector |
| Number of Channels per Chip | 2 |
| Typical Response Time | 1.3µs |
| Pin Count | 8 |
| Typical Single Supply Voltage | 3 → 28 V |
| Dimensions | 4.9 x 3.91 x 1.58mm |
| Length | 4.9mm |
| Width | 3.91mm |
| Height | 1.58mm |
| Typical Voltage Gain | 106.02 dB |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
