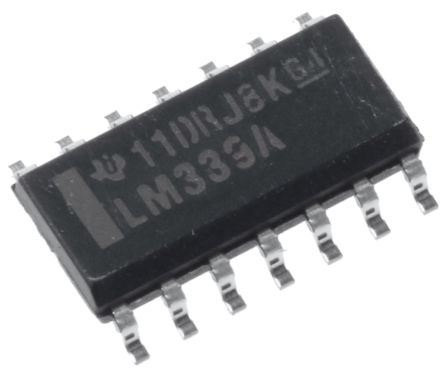

LM339A quad 1.3uS comparator, SOIC14 [LM339AD]; 144-9913
0₫
Mã kho: 1449913
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual, Single |
| Output Type | Open Collector |
| Number of Channels per Chip | 4 |
| Typical Response Time | 1.3µs |
| Pin Count | 14 |
| Typical Single Supply Voltage | 3 → 28 V |
| Dimensions | 8.65 x 3.91 x 1.58mm |
| Length | 8.65mm |
| Width | 3.91mm |
| Height | 1.58mm |
| Maximum Operating Temperature | +70 °C |
| Minimum Operating Temperature | 0 °C |
| Typical Voltage Gain | 106.02 dB |
| Typical Dual Supply Voltage | ±12 V, ±3 V, ±5 V, ±9 V |
