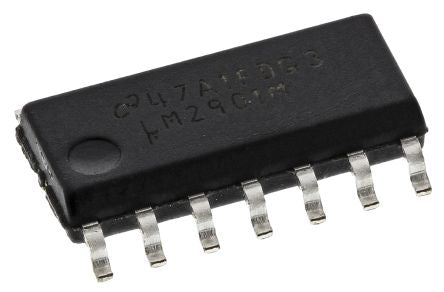

LM2901M/NOPB Texas Instruments, Quad Comparator, Open Collector O/P, 1.3μs 3 → 28 V 14-Pin SOIC [LM2901M/NOPB]; 179-1592
0₫
Mã kho: 1791592
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | Differential |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual, Single |
| Output Type | Open Collector |
| Number of Channels per Chip | 4 |
| Typical Response Time | 1.3µs |
| Pin Count | 14 |
| Typical Single Supply Voltage | 3 → 28 V |
| Dimensions | 8.64 x 3.91 x 1.45mm |
| Length | 8.64mm |
| Width | 3.91mm |
| Height | 1.45mm |
| Typical Voltage Gain | 100 dB |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Typical Dual Supply Voltage | ±12 V, ±15 V, ±3 V, ±5 V, ±9 V |
