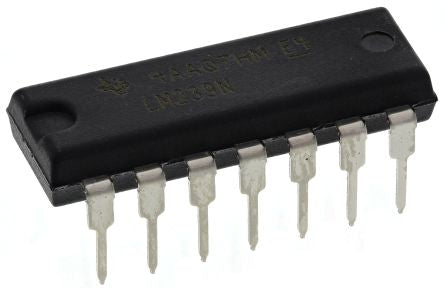

LM239 quad 0.3uS comparator, DIP14 [LM239N]; 145-0107
0₫
Mã kho: 1450107
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | Differential |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual, Single |
| Output Type | Open Collector |
| Number of Channels per Chip | 4 |
| Typical Response Time | 1.3µs |
| Pin Count | 14 |
| Typical Single Supply Voltage | 3 → 28 V |
| Dimensions | 19.3 x 6.35 x 4.57mm |
| Length | 19.3mm |
| Width | 6.35mm |
| Height | 4.57mm |
| Maximum Operating Temperature | +125 °C |
| Typical Dual Supply Voltage | ±12 V, ±3 V, ±5 V, ±9 V |
| Typical Voltage Gain | 106.02 dB |
| Minimum Operating Temperature | -25 °C |
