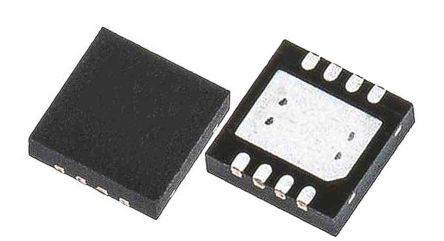

STMicroelectronics, LM293QT [LM293QT]; 189-1854
0₫
Mã kho: 1891854
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | DFN |
| Power Supply Type | Dual, Single |
| Output Type | CMOS, DTL, ECL, MOS, TTL |
| Number of Channels per Chip | 2 |
| Typical Response Time | 1.3µs |
| Pin Count | 8 |
| Typical Single Supply Voltage | 2 → 36 V |
| Dimensions | 2.05 x 2.05 x 0.7mm |
| Length | 2.05mm |
| Width | 2.05mm |
| Height | 0.7mm |
| Typical Dual Supply Voltage | ±1 to ±18V |
| Typical Voltage Gain | 200 V/mV |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +105 °C |
