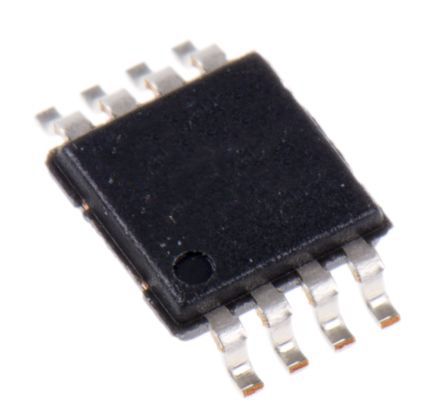

BU7232FVM-TR ROHM, Dual Comparator, CMOS, Push-Pull O/P, 1.7μs 1.8 → 5.5 V 8-Pin MSOP [BU7232FVM-TR]; 146-7002
by ROHM
0₫
Mã kho: 1467002
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Comparator Type | Low Voltage CMOS |
Mounting Type | Surface Mount |
Package Type | MSOP |
Power Supply Type | Single |
Output Type | CMOS, Push-Pull |
Number of Channels per Chip | 2 |
Typical Response Time | 1.7µs |
Pin Count | 8 |
Typical Single Supply Voltage | 1.8 → 5.5 V |
Dimensions | 2.9 x 2.8 x 0.75mm |
Length | 2.9mm |
Width | 2.8mm |
Height | 0.75mm |
Typical CMRR | 80dB |
Maximum Operating Temperature | +85 °C |
Typical Voltage Gain | 90 dB |
Minimum Operating Temperature | -40 °C |
Typical PSRR | 80dB |
