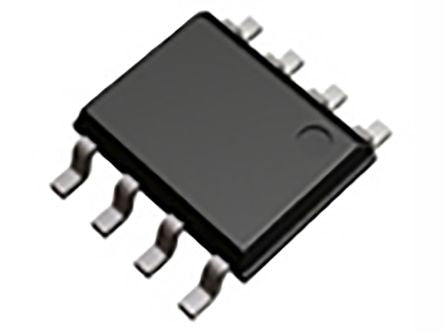

BA82903YF-CE2 ROHM, Dual Comparator, 1.3μs 2 → 36 V 8-Pin SOP [BA82903YF-CE2]; 184-8657
by ROHM
0₫
Mã kho: 1848657
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Mounting Type | Surface Mount |
| Package Type | SOP |
| Power Supply Type | Single |
| Number of Channels per Chip | 2 |
| Typical Response Time | 1.3µs |
| Pin Count | 8 |
| Typical Single Supply Voltage | 2 → 36 V |
| Dimensions | 5 x 4.4 x 1.5mm |
| Length | 5mm |
| Width | 4.4mm |
| Height | 1.5mm |
| Maximum Operating Temperature | 125 °C |
| Typical Voltage Gain | 100 dB |
| Minimum Operating Temperature | -40 °C |
| Automotive Standard | AEC-Q100 |
