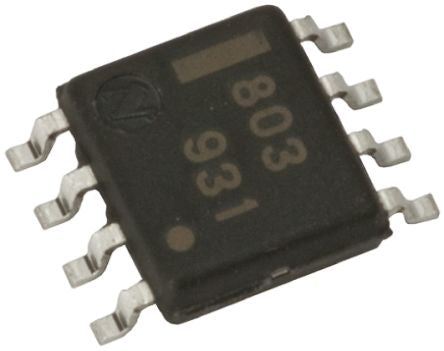

UPC277G2-A Renesas Electronics, Dual Comparator, Open Collector O/P, 1.8μs ±1 → ±16 V 8-Pin SOP [UPC277G2-A]; 601-5761
0₫
Mã kho: 6015761
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOP |
| Power Supply Type | Dual, Single |
| Output Type | Open Collector |
| Number of Channels per Chip | 2 |
| Typical Response Time | 1.8µs |
| Pin Count | 8 |
| Typical Single Supply Voltage | ±1 → ±16 V |
| Dimensions | 5.2 x 4.4 x 1.49mm |
| Length | 5.2mm |
| Width | 4.4mm |
| Height | 1.49mm |
| Maximum Operating Temperature | +70 °C |
| Typical Dual Supply Voltage | ±1 → ±18V |
| Typical Voltage Gain | 200 V/mV |
| Minimum Operating Temperature | -20 °C |
