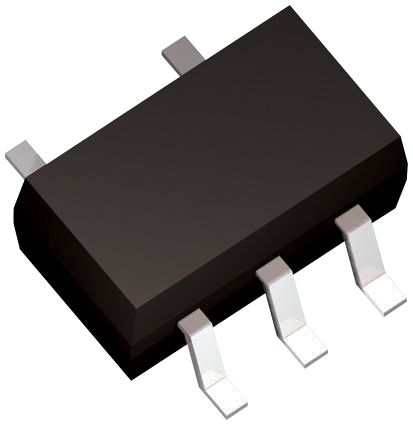

TL331VSN4T3G ON Semiconductor, Comparator, CMOS, DTL, ECL, TTL O/P, 2 → 36 V 5-Pin TSOP [TL331VSN4T3G]; 172-3373
0₫
Mã kho: 1723373
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | Low Power |
| Mounting Type | Surface Mount |
| Package Type | TSOP |
| Power Supply Type | Dual, Single |
| Output Type | CMOS, DTL, ECL, TTL |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 2 → 36 V |
| Dimensions | 3.15 x 1.65 x 1mm |
| Length | 3.15mm |
| Width | 1.65mm |
| Height | 1mm |
| Typical Voltage Gain | 200 V/mV |
| Maximum Operating Temperature | +150 °C |
| Automotive Standard | AEC-Q100 |
| Typical Dual Supply Voltage | ±1 → ±18V |
