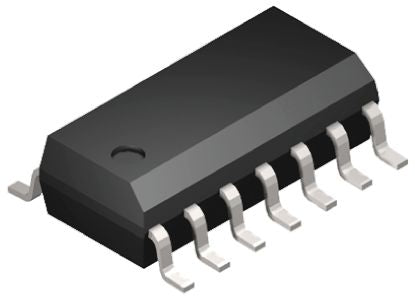

NCV2901DR2G ON Semiconductor, Quad Comparator, CMOS, TTL O/P, 1.3μs 3 → 36 V 14-Pin SOIC [NCV2901DR2G]; 162-9576
0₫
Mã kho: 1629576
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual, Single |
| Output Type | CMOS, TTL |
| Number of Channels per Chip | 4 |
| Typical Response Time | 1.3µs |
| Pin Count | 14 |
| Typical Single Supply Voltage | 3 → 36 V |
| Dimensions | 8.75 x 4 x 1.5mm |
| Length | 8.75mm |
| Width | 4mm |
| Height | 1.5mm |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 100 V/mV |
| Typical Dual Supply Voltage | ±18V |
