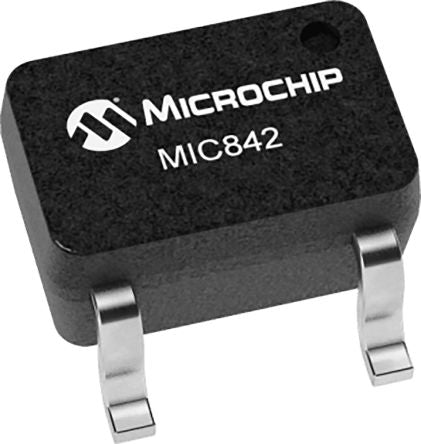

MIC842LYC5-TR Microchip Technology, Comparator & Voltage Reference, Push-Pull O/P, 12μs 5-Pin SC-70 [MIC842LYC5-TR]; 177-3305
by Microchip
0₫
Mã kho: 1773305
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Comparator Type | Voltage |
Mounting Type | Surface Mount |
Package Type | SC-70 |
Power Supply Type | Single |
Output Type | Push-Pull |
Number of Channels per Chip | 1 |
Typical Response Time | 12µs |
Pin Count | 5 |
Dimensions | 1.8 x 1.15 x 0.8mm |
Length | 1.8mm |
Width | 1.15mm |
Height | 0.8mm |
Maximum Operating Temperature | +85 °C |
Minimum Operating Temperature | -40 °C |
