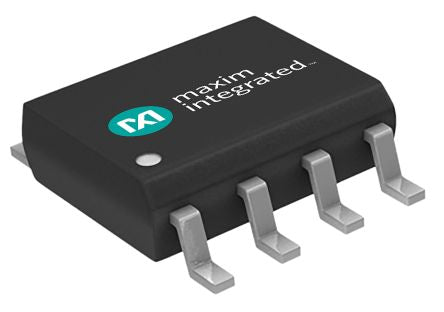

H-Speed Micro LVoltage I/O Comparator [MAX987ESA+]; 190-6652
0₫
Mã kho: 1906652
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | High Speed, Micro Power Comparator |
| Mounting Type | Surface Mount |
| Package Type | SO |
| Power Supply Type | Dual, Single |
| Output Type | Push-Pull |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 2.5 → 5.5 V |
| Dimensions | 5 x 4 x 1.5mm |
| Length | 5mm |
| Width | 4mm |
| Height | 1.5mm |
| Typical CMRR | 80dB |
| Typical Dual Supply Voltage | ±1.25 to ±2.75V |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Typical PSRR | 80dB |
