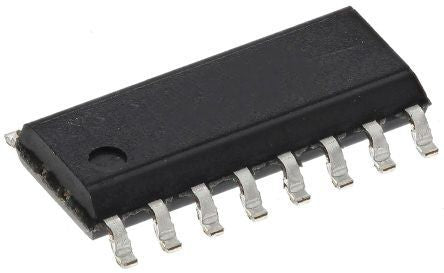

Single/Dual/Quad H-Speed Comparator [MAX978EEE+]; 190-6646
0₫
Mã kho: 1906646
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | High Speed, Low Power |
| Mounting Type | Surface Mount |
| Package Type | QSOP |
| Power Supply Type | Single |
| Output Type | Rail to Rail |
| Pin Count | 16 |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Dimensions | 4.98 x 3.99 x 1.65mm |
| Length | 4.98mm |
| Width | 3.99mm |
| Height | 1.65mm |
| Typical CMRR | 95dB |
| Minimum Operating Temperature | -40 °C |
| Maximum Operating Temperature | +85 °C |
| Typical PSRR | 100dB |
