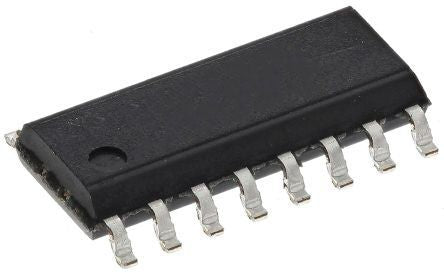

Single/Dual/Quad H-Speed Comparator [MAX978EEE+]; 190-4379
0₫
Mã kho: 1904379
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Comparator Type | High Speed, Low Power |
Mounting Type | Surface Mount |
Package Type | QSOP |
Power Supply Type | Single |
Output Type | Rail to Rail |
Pin Count | 16 |
Typical Single Supply Voltage | 2.7 → 5.5 V |
Dimensions | 4.98 x 3.99 x 1.65mm |
Length | 4.98mm |
Width | 3.99mm |
Height | 1.65mm |
Typical CMRR | 95dB |
Maximum Operating Temperature | +85 °C |
Typical PSRR | 100dB |
Minimum Operating Temperature | -40 °C |
