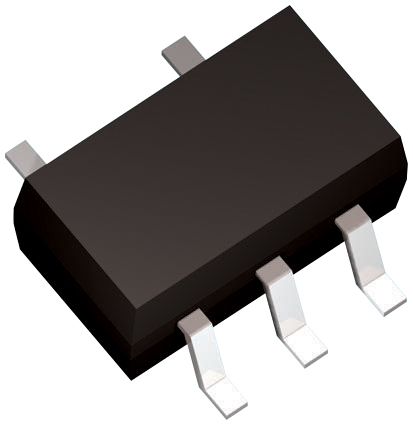

LMV331W5-7 DiodesZetex, Comparator, Open Collector O/P, 2.7 → 5.5 V 5-Pin SOT-25 [LMV331W5-7]; 165-8320
by DiodesZetex
0₫
Mã kho: 1658320
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOT-25 |
| Power Supply Type | Single |
| Output Type | Open Collector |
| Number of Channels per Chip | 1 |
| Pin Count | 5 |
| Typical Single Supply Voltage | 2.7 → 5.5 V |
| Dimensions | 3.1 x 1.7 x 1.3mm |
| Length | 3.1mm |
| Width | 1.7mm |
| Height | 1.3mm |
| Maximum Operating Temperature | +125 °C |
| Typical Voltage Gain | 50 V/mV |
| Minimum Operating Temperature | -40 °C |
