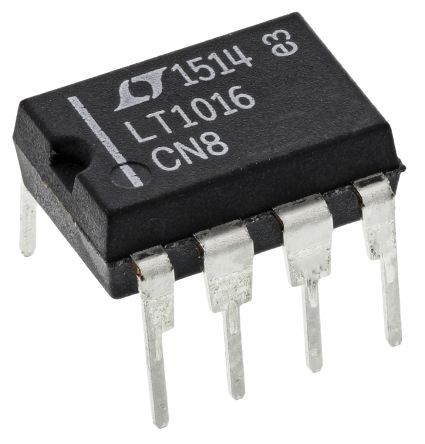

LT1016CN8#PBF Linear Technology, Comparator, Complementary O/P, 5 V 8-Pin PDIP [LT1016CN8#PBF]; 545-4799
0₫
Mã kho: 5454799
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual, Single |
| Output Type | Complementary |
| Number of Channels per Chip | 1 |
| Pin Count | 8 |
| Typical Single Supply Voltage | 5 V |
| Dimensions | 10.16 x 6.48 x 3.3mm |
| Length | 10.16mm |
| Width | 6.48mm |
| Height | 3.3mm |
| Typical CMRR | 96dB |
| Typical Dual Supply Voltage | ±3V |
| Typical PSRR | 75dB |
| Typical Voltage Gain | 69.54 dB |
| Minimum Operating Temperature | 0 °C |
| Maximum Operating Temperature | +70 °C |
