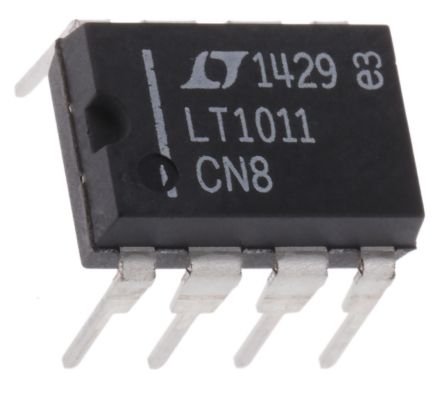

LT1011CN8#PBF Linear Technology, Comparator, [LT1011CN8#PBF]; 153-3559
0₫
Mã kho: 1533559
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Through Hole |
| Package Type | PDIP |
| Power Supply Type | Dual, Single |
| Output Type | Open Collector |
| Number of Channels per Chip | 1 |
| Typical Response Time | 0.15µs |
| Pin Count | 8 |
| Typical Single Supply Voltage | 30 V |
| Dimensions | 10.16 x 6.477 x 3.302mm |
| Length | 10.16mm |
| Width | 6.477mm |
| Height | 3.302mm |
| Typical CMRR | 115dB |
| Maximum Operating Temperature | +70 °C |
| Typical Dual Supply Voltage | ±15V |
| Minimum Operating Temperature | 0 °C |
| Typical Voltage Gain | 500 V/mV |
