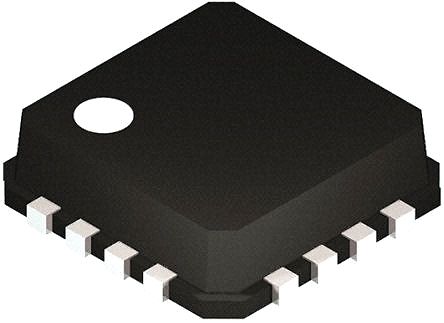

ADCMP581BCPZ-WP Analog Devices, Comparator, ECL O/P, 0.037ns 16-Pin LFCSP [ADCMP581BCPZ-WP]; 160-2883
0₫
Mã kho: 1602883
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | LFCSP |
| Power Supply Type | Dual |
| Output Type | ECL |
| Number of Channels per Chip | 1 |
| Typical Response Time | 0.037ns |
| Pin Count | 16 |
| Dimensions | 3 x 3 x 0.8mm |
| Length | 3mm |
| Width | 3mm |
| Height | 0.8mm |
| Typical CMRR | 60dB |
| Typical Voltage Gain | 48 dB |
| Maximum Operating Temperature | +125 °C |
| Minimum Operating Temperature | -40 °C |
| Typical PSRR | -75dB |
