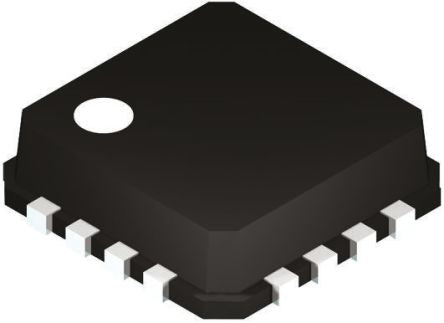

ADCMP572BCPZ-R2 Analog Devices, Comparator, CML O/P, 0.000165μs 3.3 → 5.2 V 16-Pin LFCSP VQ [ADCMP572BCPZ-R2]; 159-7677
0₫
Mã kho: 1597677
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | High Speed |
| Mounting Type | Surface Mount |
| Package Type | LFCSP VQ |
| Power Supply Type | Single |
| Output Type | CML |
| Number of Channels per Chip | 1 |
| Typical Response Time | 0.000165µs |
| Pin Count | 16 |
| Typical Single Supply Voltage | 3.3 → 5.2 V |
| Dimensions | 3 x 3 x 0.95mm |
| Length | 3mm |
| Width | 3mm |
| Height | 0.95mm |
| Typical CMRR | 65dB |
| Typical PSRR | 74dB |
| Maximum Operating Temperature | 85 °C |
| Minimum Operating Temperature | -40 °C |
| Typical Voltage Gain | 54 dB |
