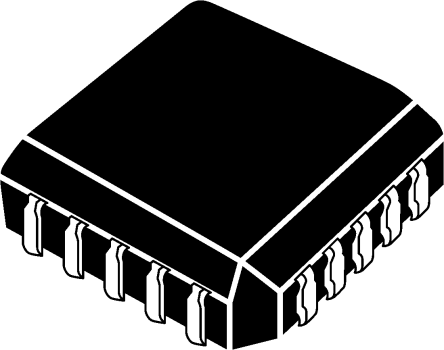

AD96687BPZ Analog Devices, Dual Comparator, Complementary O/P, 20-Pin PLCC [AD96687BPZ]; 709-7385
0₫
Mã kho: 7097385
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | PLCC |
| Power Supply Type | Dual |
| Output Type | Complementary |
| Number of Channels per Chip | 2 |
| Pin Count | 20 |
| Dimensions | 9.04 x 9.04 x 3.68mm |
| Length | 9.04mm |
| Width | 9.04mm |
| Height | 3.68mm |
| Typical CMRR | 90dB |
| Maximum Operating Temperature | +85 °C |
| Typical PSRR | 70dB |
| Minimum Operating Temperature | -25 °C |
| Typical Dual Supply Voltage | -5.2 V, 5 V |
