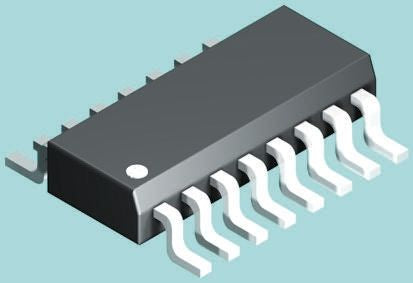

AD96685BRZ Analog Devices, Comparator, Complementary O/P, 16-Pin SOIC [AD96685BRZ]; 709-7382
0₫
Mã kho: 7097382
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Comparator Type | General Purpose |
| Mounting Type | Surface Mount |
| Package Type | SOIC |
| Power Supply Type | Dual |
| Output Type | Complementary |
| Number of Channels per Chip | 1 |
| Pin Count | 16 |
| Dimensions | 10 x 4 x 1.5mm |
| Length | 10mm |
| Width | 4mm |
| Height | 1.5mm |
| Typical CMRR | 90dB |
| Minimum Operating Temperature | -25 °C |
| Maximum Operating Temperature | +85 °C |
| Typical PSRR | 70dB |
| Typical Dual Supply Voltage | -5.2 V, 5 V |
