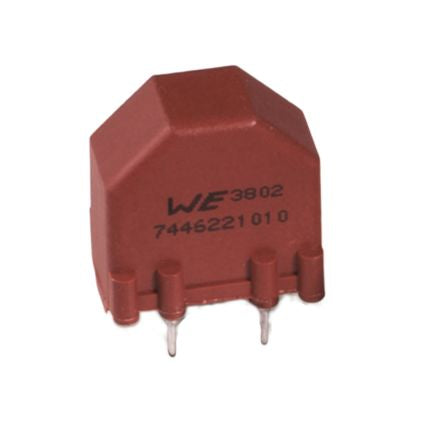

2 x 4 mH Wurth Elektronik WE-LF Common Mode Choke 70 mΩ [7446323004]; 904-0338
0₫
Mã kho: 9040338
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
| THÔNG SỐ KỸ THUẬT | |
|---|---|
| Inductance | 2 x 4 mH |
| Series | WE-LF |
| Impedance | 70 mΩ |
| DC Resistance | 2 x 0.07Ω |
| Maximum Current | 0.125 |
| Dimensions | 26.5 x 18.5 x 30.5mm |
| Operating Temperature Range | -40 → +125 °C |
| Mounting Type | Through Hole |
| Maximum Operating Temperature | +125°C |
| Height | 30.5mm |
| Length | 26.5mm |
| Depth | 18.5mm |
| Minimum Operating Temperature | -40°C |
