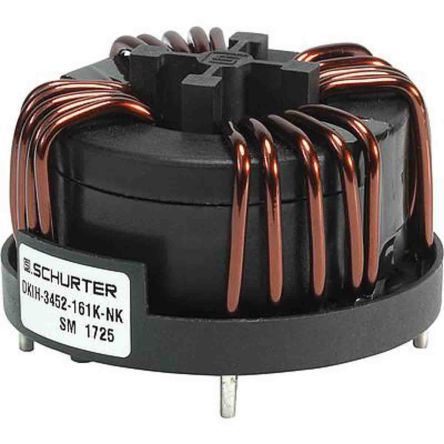

750 μH Schurter DKIH-4 Power Choke Coil [3-108-439]; 188-9641
by Schurter
0₫
Mã kho: 1889641
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Inductance | 750 μH |
Series | DKIH-4 |
Test Frequency | 15.4 MHz |
DC Resistance | 0.44mΩ |
Maximum Current | 40 A |
Dimensions | 58 Dia. x 31mm |
Operating Temperature Range | -40 → +100 °C |
Mounting Type | Flange Mount |
Termination Style | Through Hole |
Package/Case | 58-40 |
Maximum Operating Temperature | +100°C |
Height | 31mm |
Minimum Operating Temperature | -40°C |
Depth | 58 Dia.mm |
