![Schurter 3-108-428 1889517](http://nguyenxuong.com/cdn/shop/products/Y1889517-01_444x444.jpg?v=1594238336)

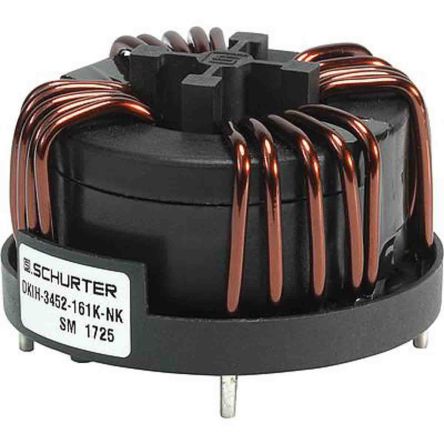

2.1 mH Schurter DKIH-4 Power Choke Coil [3-108-428]; 188-9517
by Schurter
0₫
Mã kho: 1889517
Liên hệ để có giá tốt (Vietnam: 0898.332.898, E-mail: SKF@nguyenxuong.com)
THÔNG SỐ KỸ THUẬT | |
---|---|
Inductance | 2.1 mH |
Series | DKIH-4 |
Test Frequency | 6.6 MHz |
DC Resistance | 2.12mΩ |
Maximum Current | 16 A |
Dimensions | 53 Dia. x 31mm |
Operating Temperature Range | -40 → +100 °C |
Mounting Type | Flange Mount |
Termination Style | Through Hole |
Package/Case | 52-16 |
Maximum Operating Temperature | +100°C |
Depth | 53 Dia.mm |
Minimum Operating Temperature | -40°C |
Height | 31mm |
